AHT Series
SKU: AHC Series

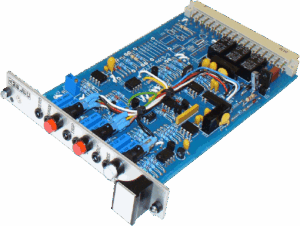

The AHC series is our collection of high density rack mounting arithmetic units to fit any input and required specification. Able to process multiple types of inputs and output to requirements.

Function
Arithmetic Units		 Model No.
 HP
wide		 Single
Input		 Supply
24Vdc
115/
230
Vac		 Upscale
on
open
circuit		 Downscale
on
open
circuit		 Reverse
Output		 Single
Output		 Dual
Output		 Low
limit		 High
limit		 Over-range
limit
RFI
Protection		 Notes
Download
datasheet		               R       K
Scale/bias/invert AHC811 4HP Standard AMELEC model Standard AMELEC model Chargeable option Standard AMELEC model Non-chargeable option
  		 Standard AMELEC model not available Non-chargeable option
  		 Non-chargeable option
  		 Non-chargeable option
  		 Chargeable option Window expansion/contraction/reversal
Square root AHC812 4HP Standard AMELEC model Standard AMELEC model Chargeable option Standard AMELEC model not available Standard AMELEC model not available Standard AMELEC model not available not available Chargeable option Process input root extraction
High/low select AHC813 8HP Dual Input unit Standard AMELEC model not available Standard AMELEC model not available Standard AMELEC model not available not available not available not available Chargeable option Multi-input (up to 5) Hi or Lo select
Multi I/P +, -, Av AHC814 8HP Dual Input unit Standard AMELEC model not available Standard AMELEC model not available Standard AMELEC model not available not available not available not available Chargeable option Multi-input (up to 5) +, - or Average
Multiply/Divide AHC815 8HP Dual Input unit Standard AMELEC model not available Standard AMELEC model not available Standard AMELEC model not available not available not available not available Chargeable option 2 or 3 input dependent on equation
High and low limit AHC816 4HP Standard AMELEC model Standard AMELEC model Chargeable option Standard AMELEC model not available Standard AMELEC model not available Standard AMELEC model Standard AMELEC model Non-chargeable option
  		 Chargeable option Shunt I to 400mV, V >400mV
Linear Integrator AHC853 4HP Standard AMELEC model Standard AMELEC model not available Standard AMELEC model not available Standard AMELEC model Chargeable option not available not available not available Chargeable option 50 to 50,000 counts per hour
