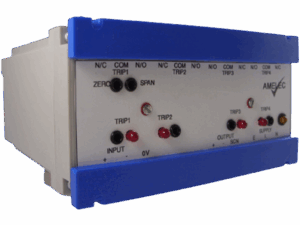

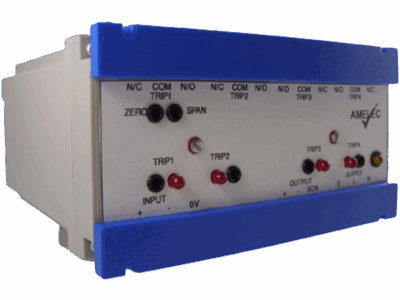

The ADT128 RTD Temperature Input Quad Output Trip Amplifier is suitable for combinations of process inputs and SIL1, SIL2 & SIL3 rated safety loop applications. RFI Protection to IEC61000-4-3 available on request.
Excitation can be set at either 5, 10 or 15V.
- Input is any 2/3 wire PT100 or PT 1000 RTD input type or temperature
Environmental Condition
Performance
Mounting/Dimensions
Environmental Condition
Storage Temperature: -40°C to +70°C
Operating Ambient: -15°C to +55°C
Relative Humidity 5% to 95% RH
Performance
Trip settability: ±1%
Trip repeatability: ±0.1%
Response time: <400mS
Mounting/Dimensions
Enclosure: 152w x 81h x 137d mm
Din Rail (TS35) or Surface by corner fixing holes
